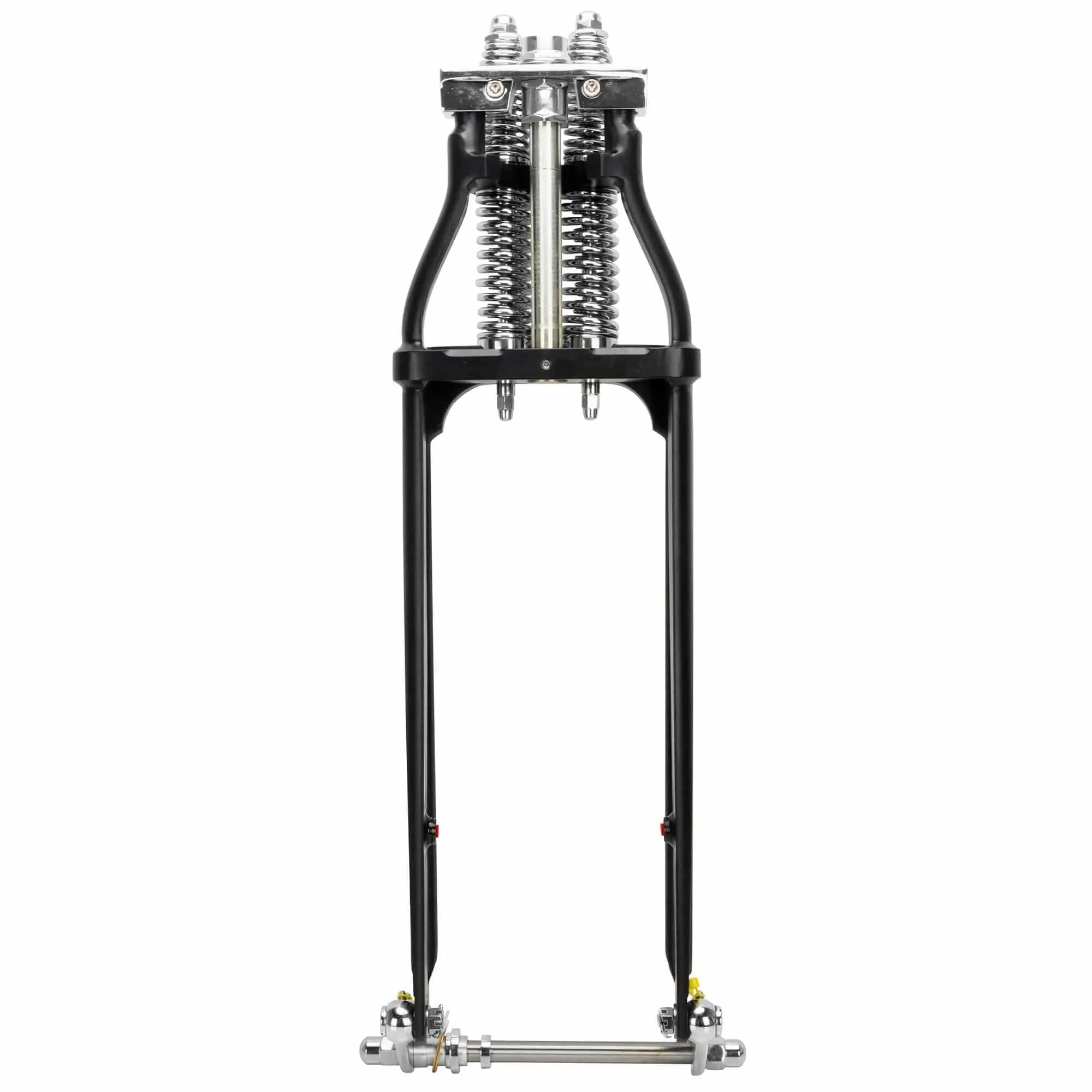

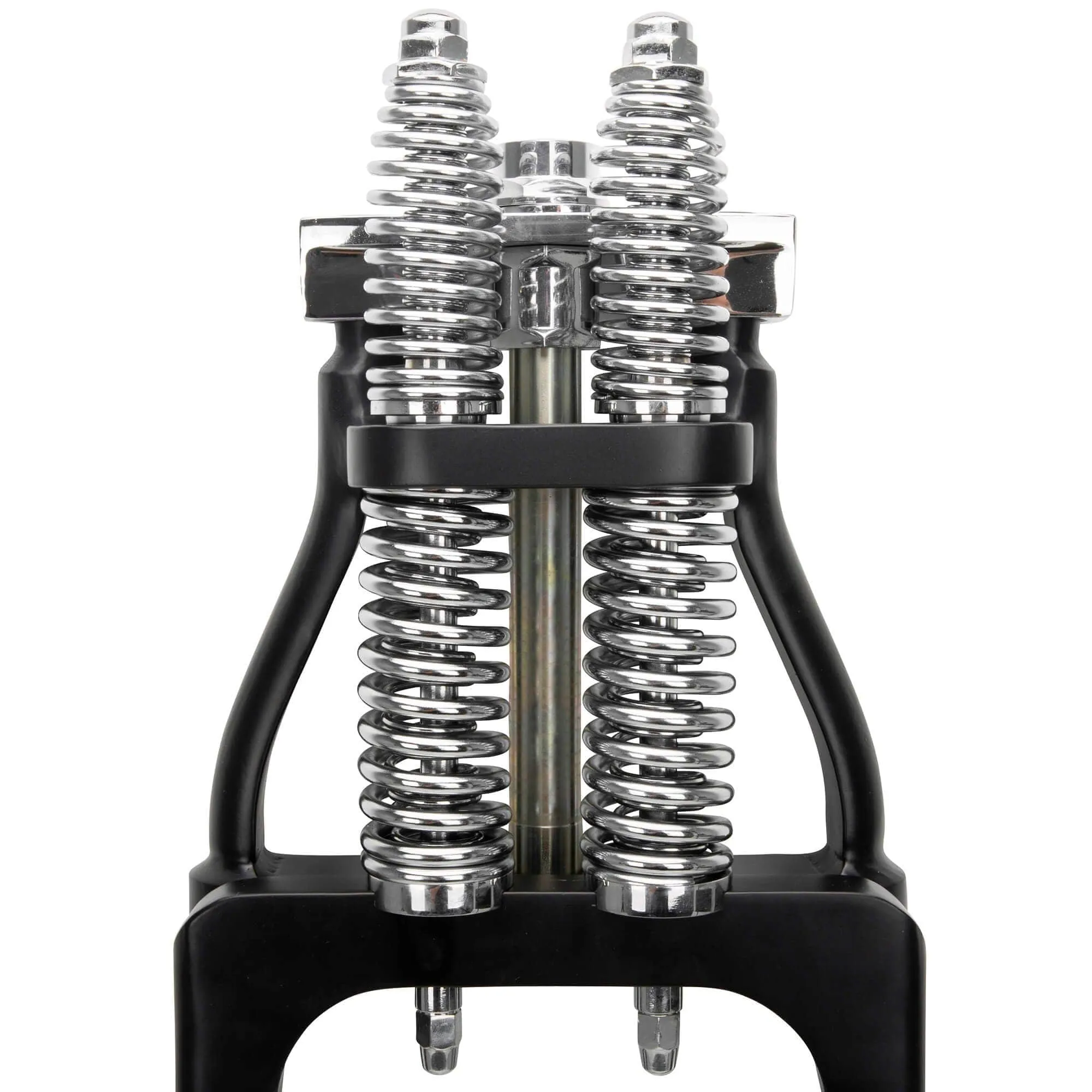

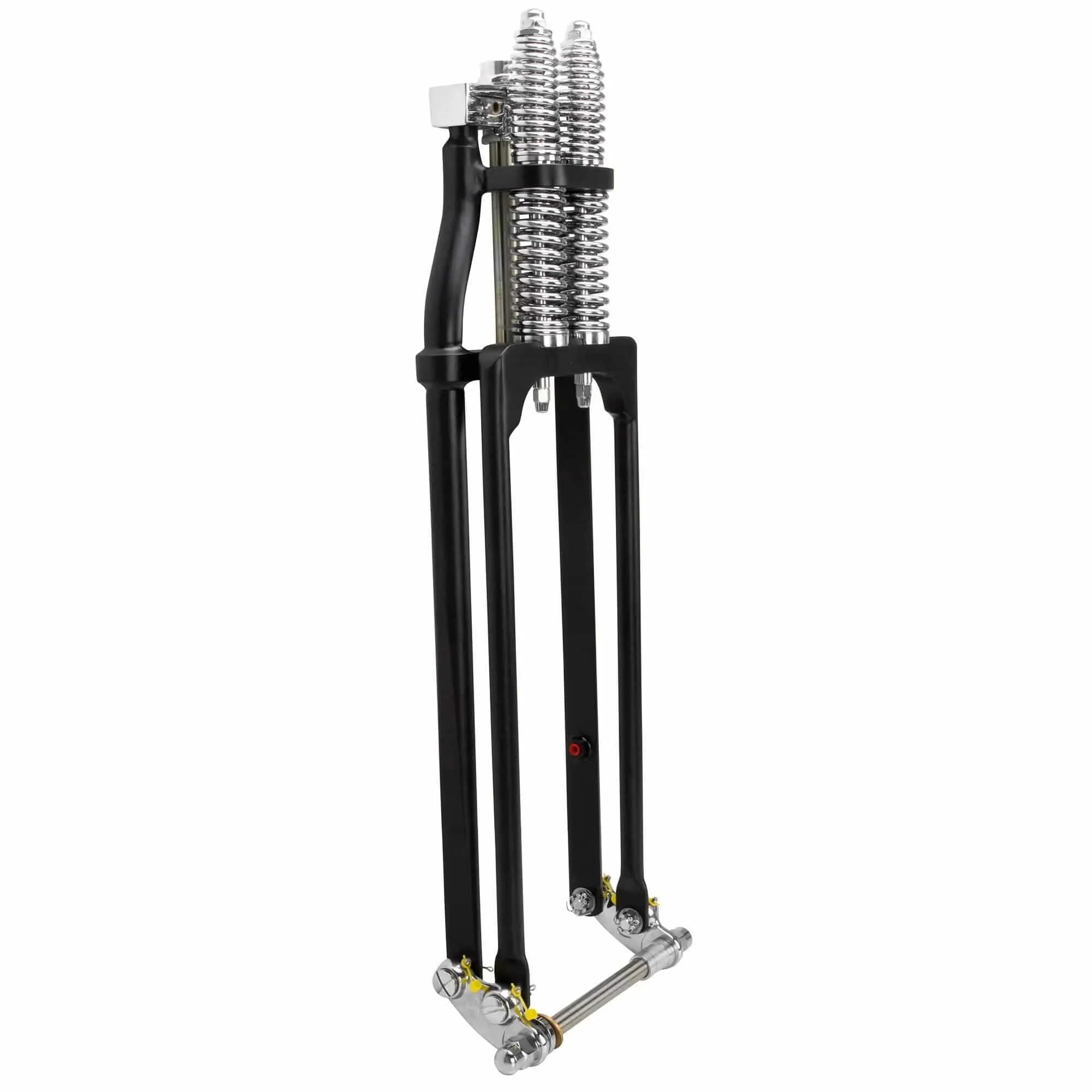

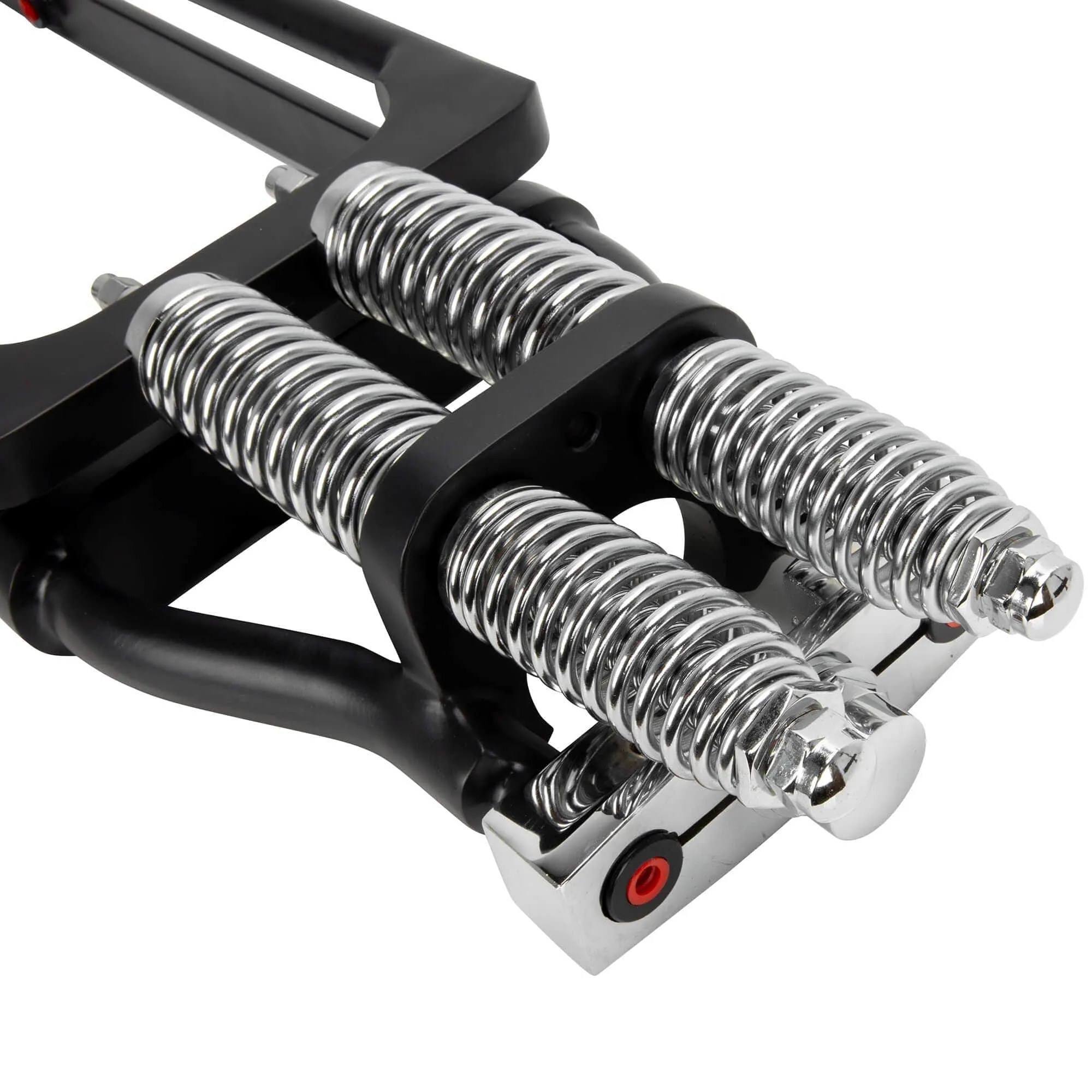

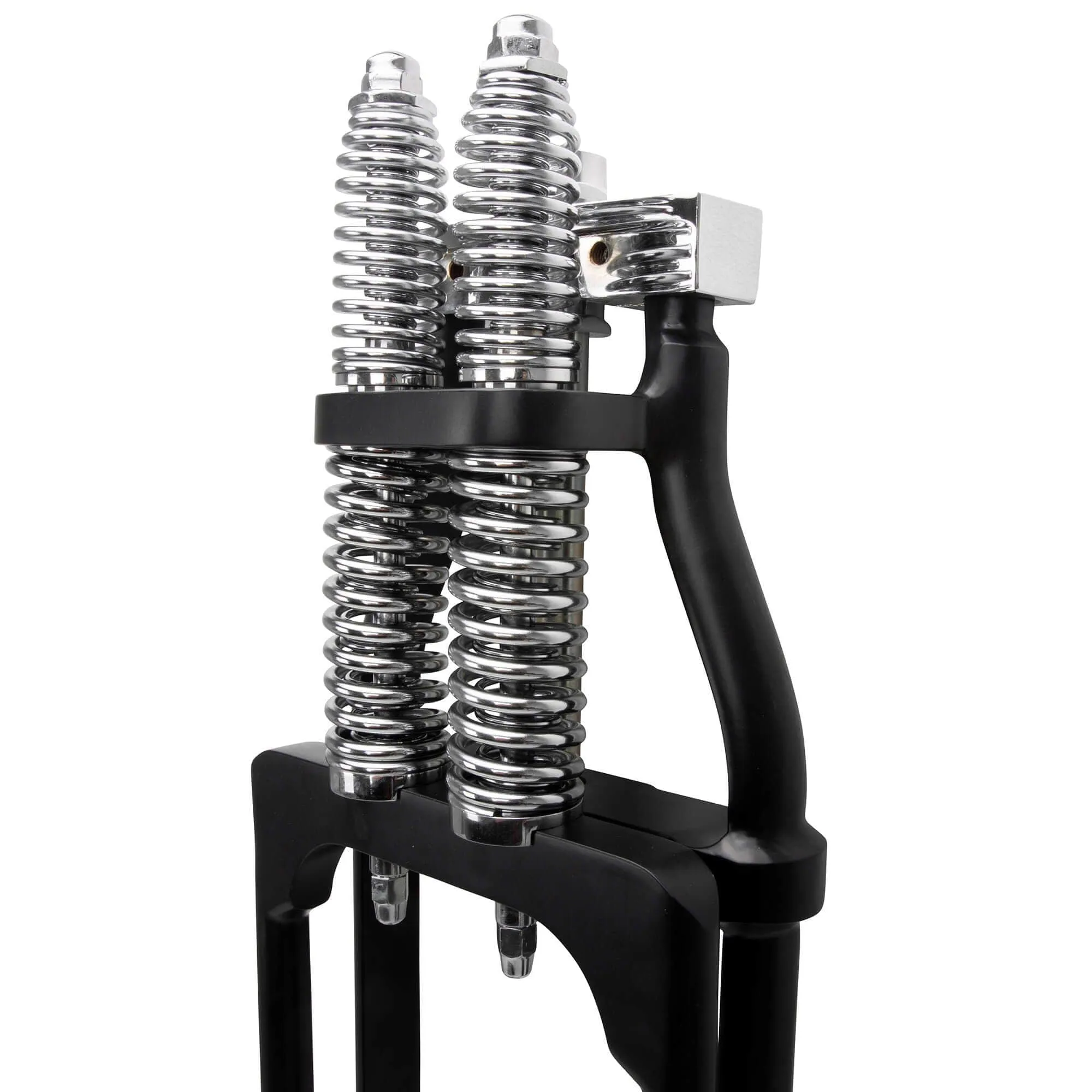

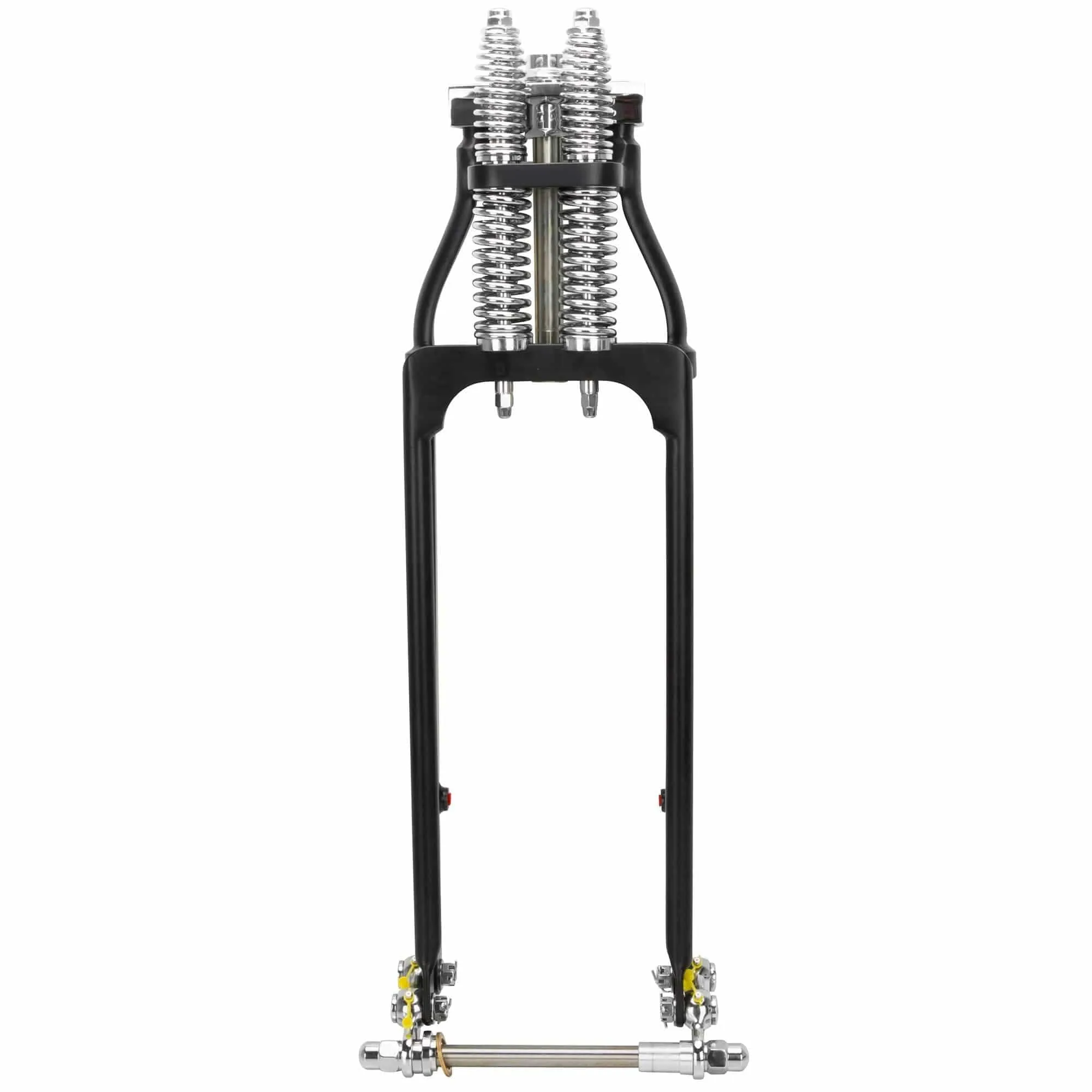

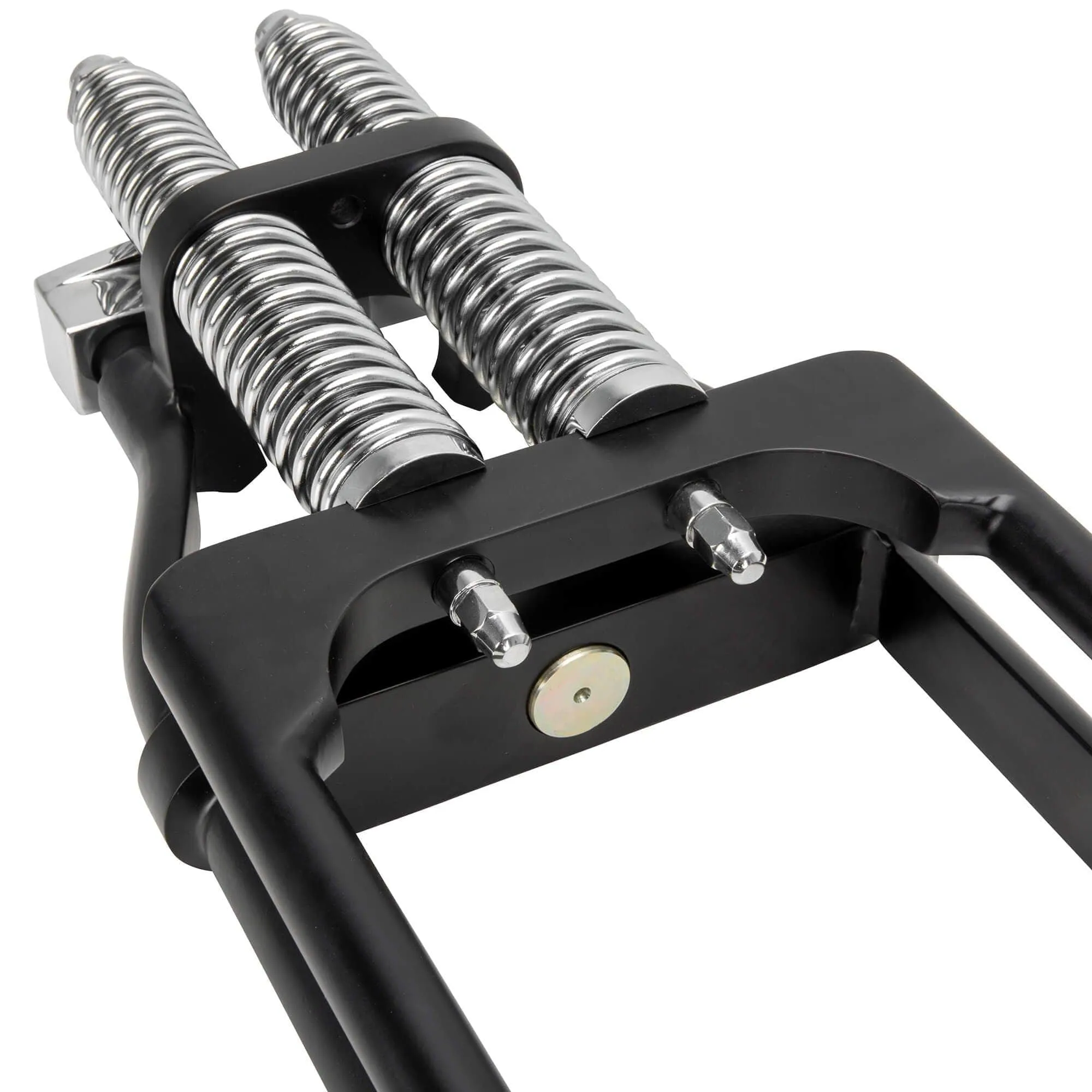

These Mid-USA springers offer an affordable alternative to other sub-standard springers on the market and feature one piece rear legs for added strength. Available in chrome or black in standard length as well as -2, and 2, lengths for custom applications.

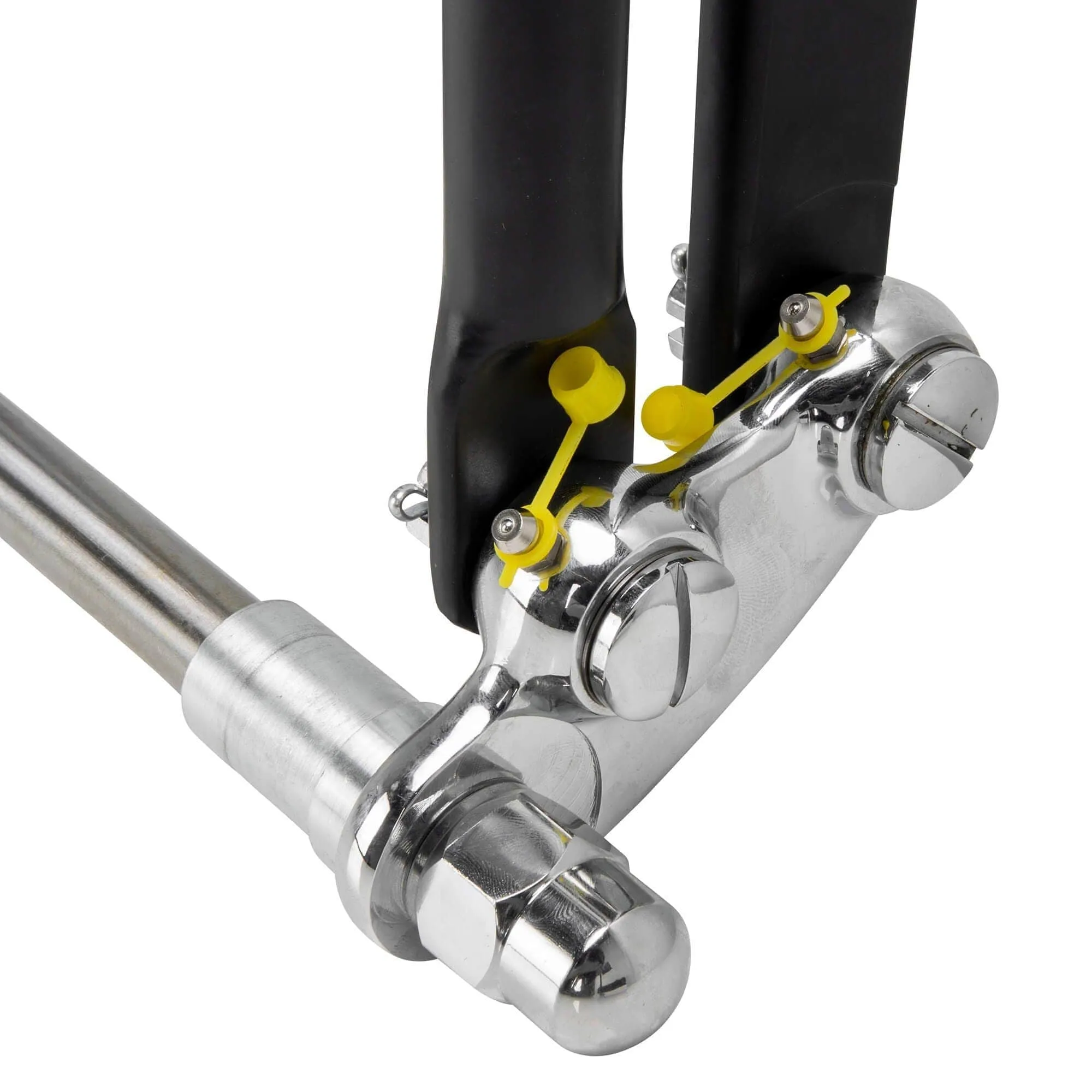

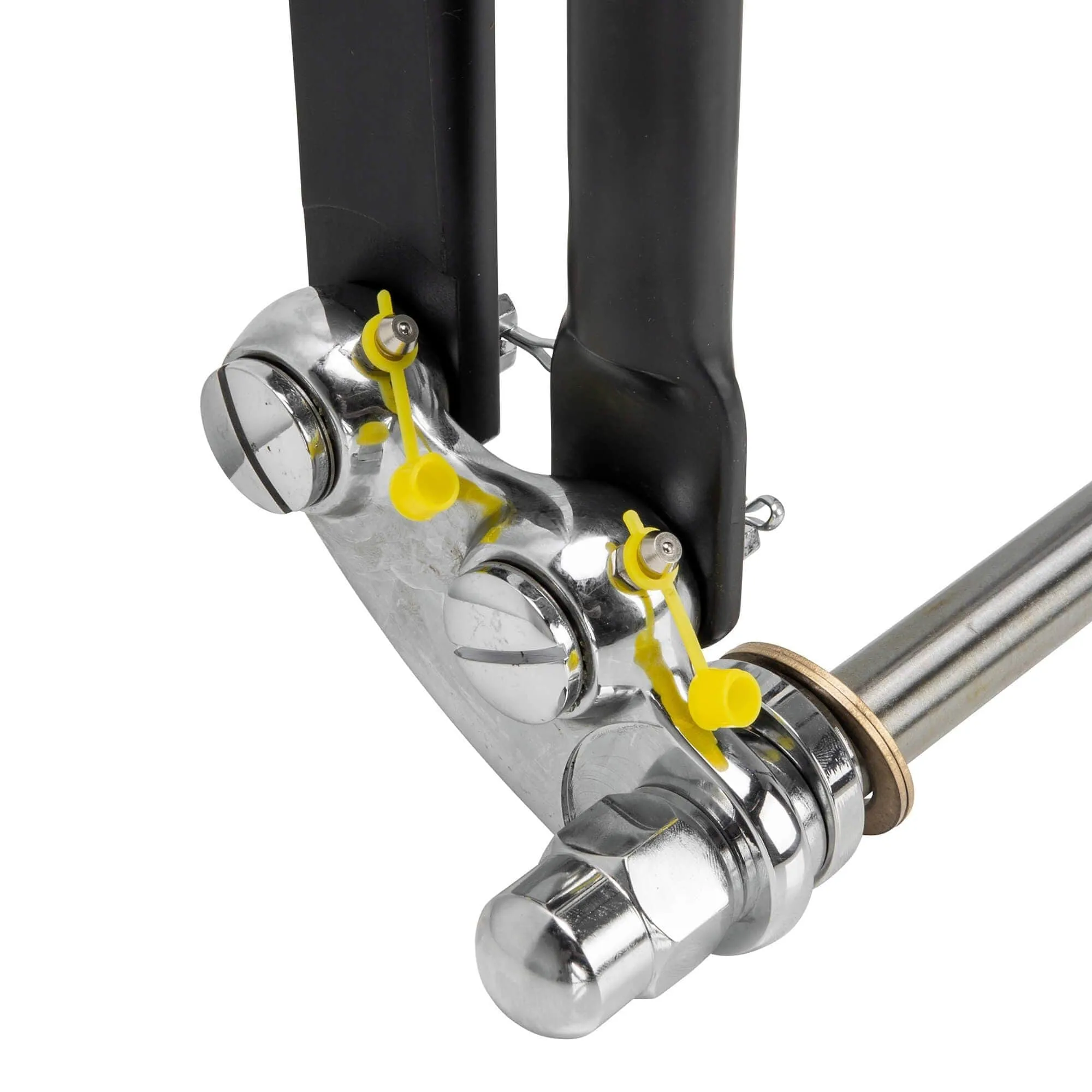

• Rocker grease fittings

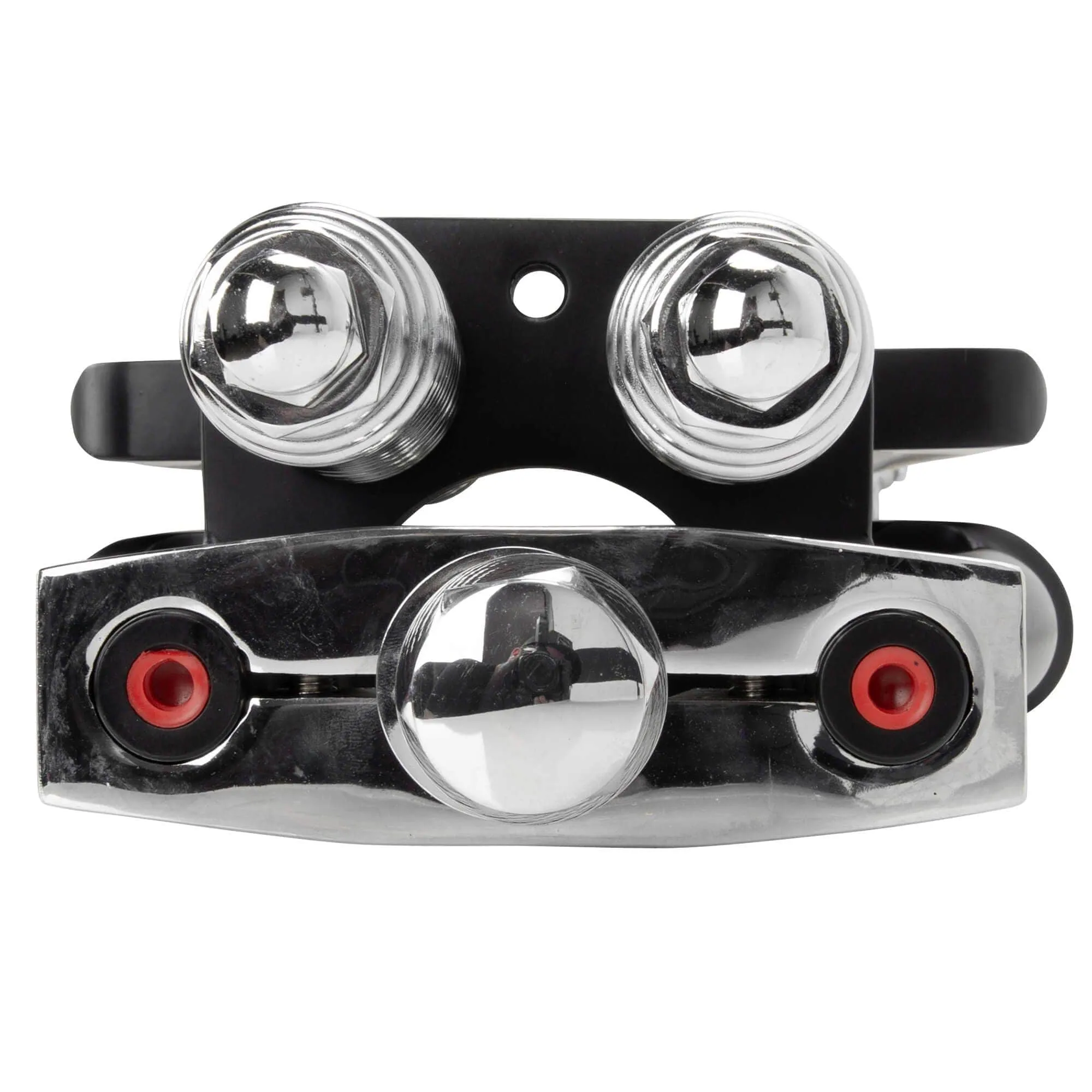

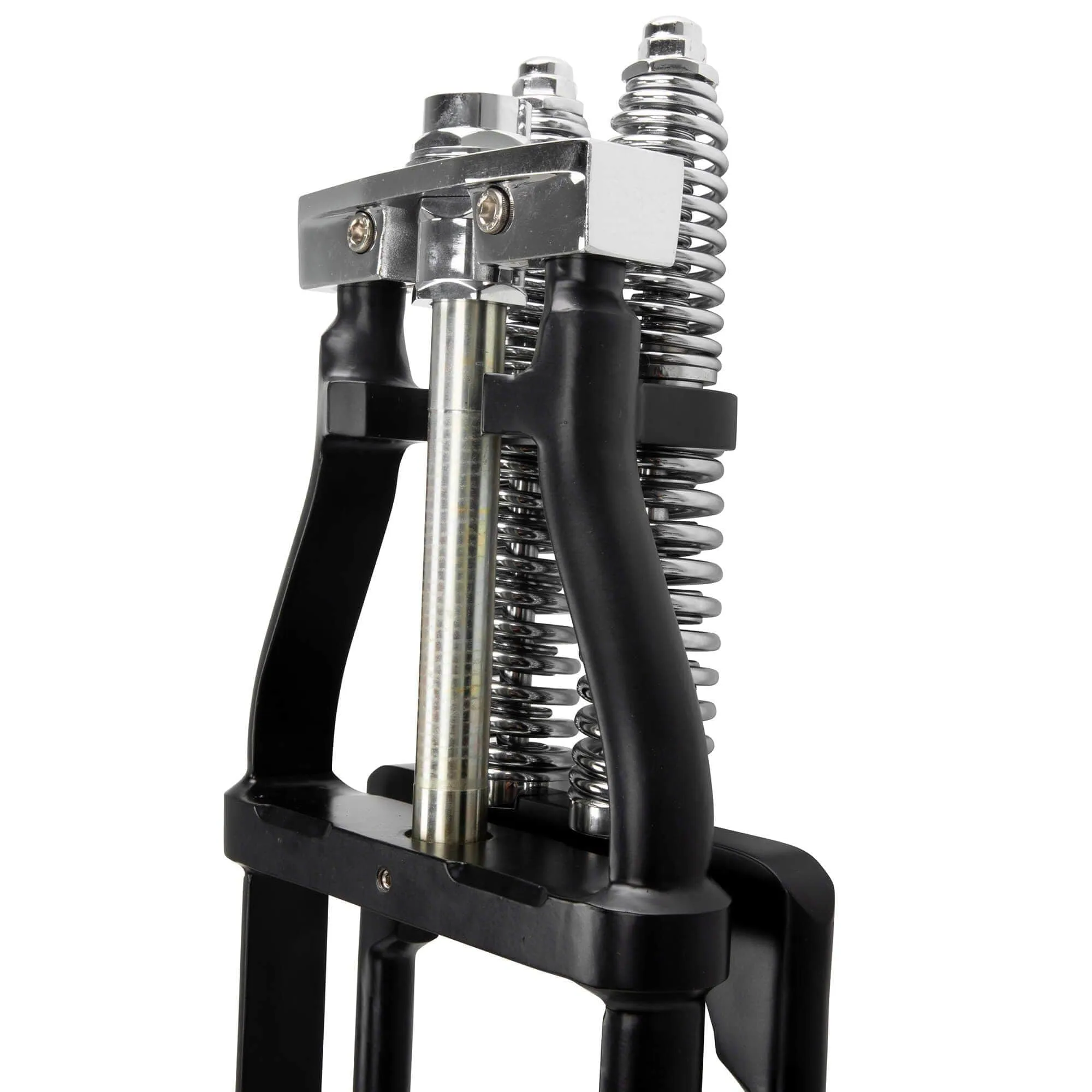

• Fully assembled with a forged in-line top bracket without a built-in rake
• The standard length Springer (24" measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end
• 1" O.D. steering stem designed for Timken type bearings
• Both rear legs are threaded for right or left brakes

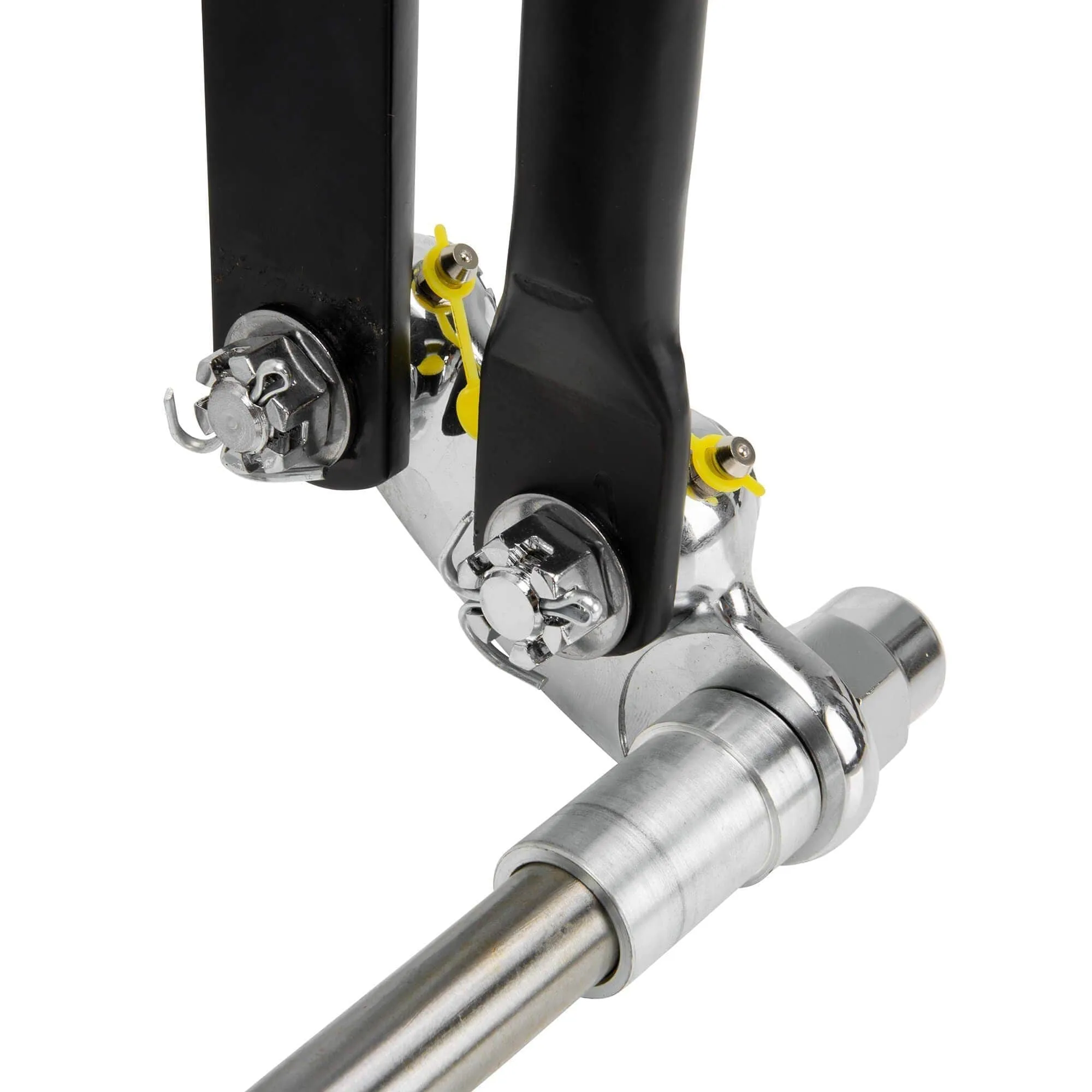

• Forged rockers for superior strength
• Rear legs are 1 piece from the rocker to the top tree

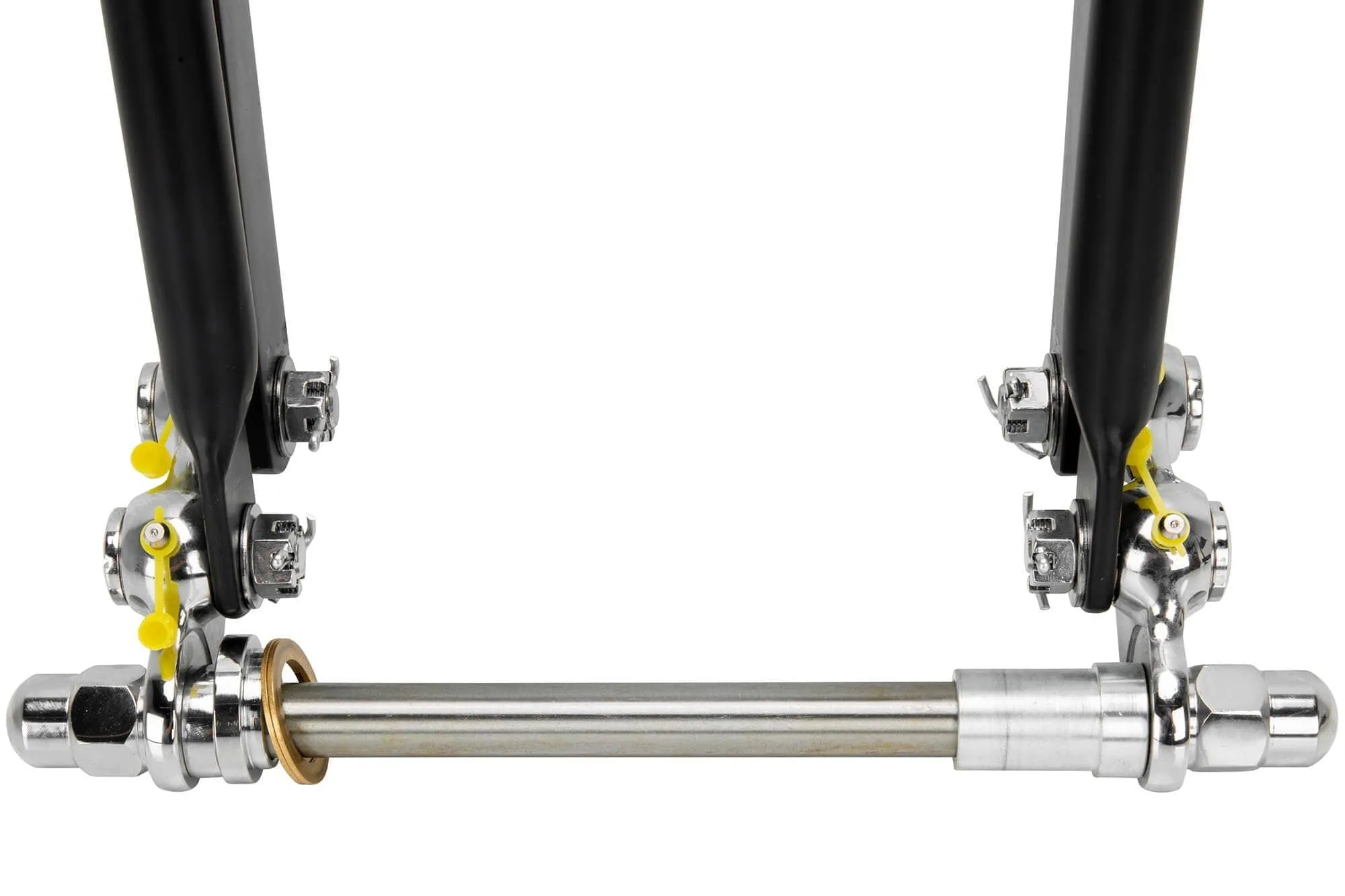

• The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

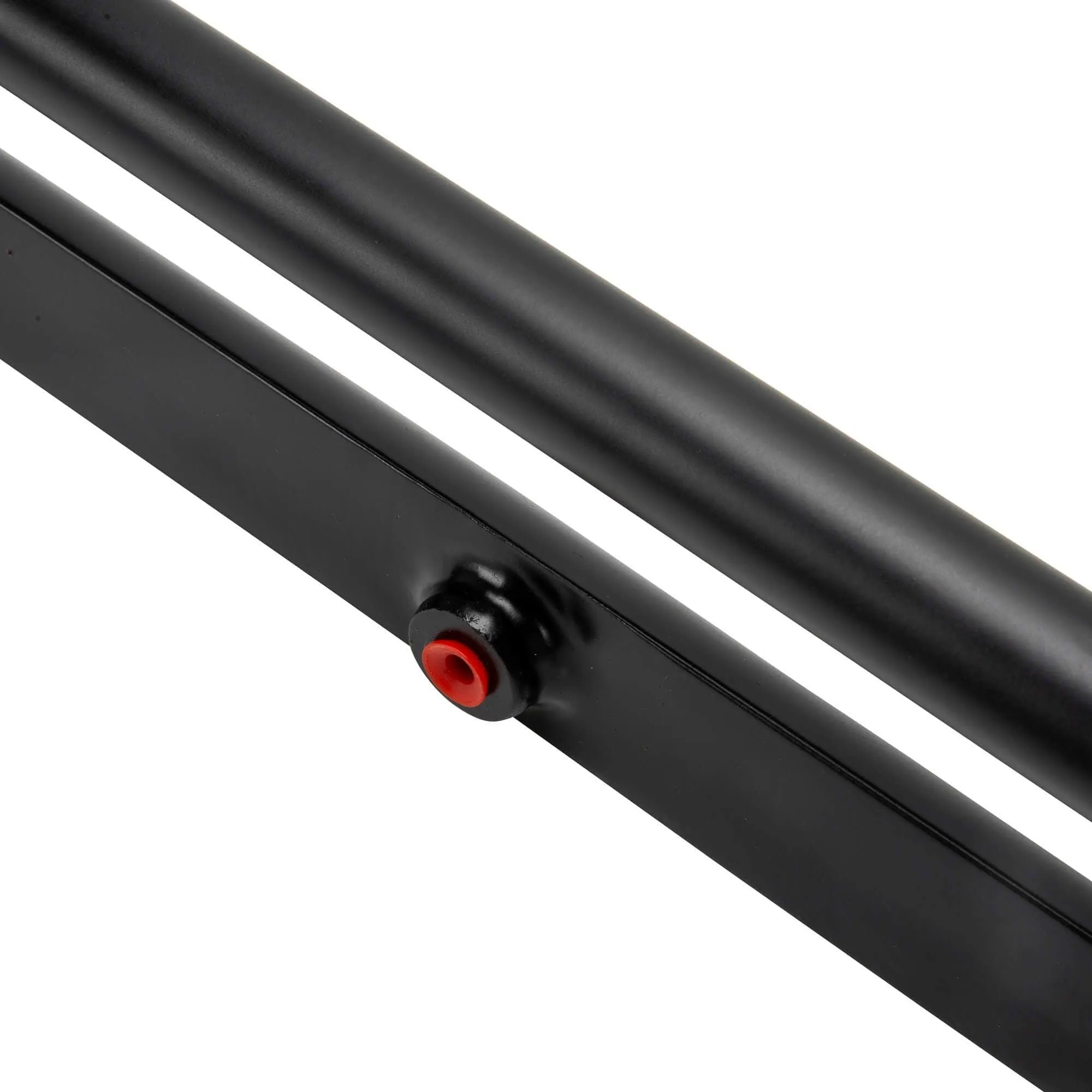

• 3/8”-24 threaded blind hole on fork leg for a brake stay
• Measures 9 1/4" between rockers
• Riser mounts are on 4 3/4" centers and threaded 1/2-20
• 2" under length = 22"

NOTE: This springer will NOT fit Harley-Davidson Dyna models, or 2004 & later Sportster models due to the design of the frame neck and turning radius issues.
