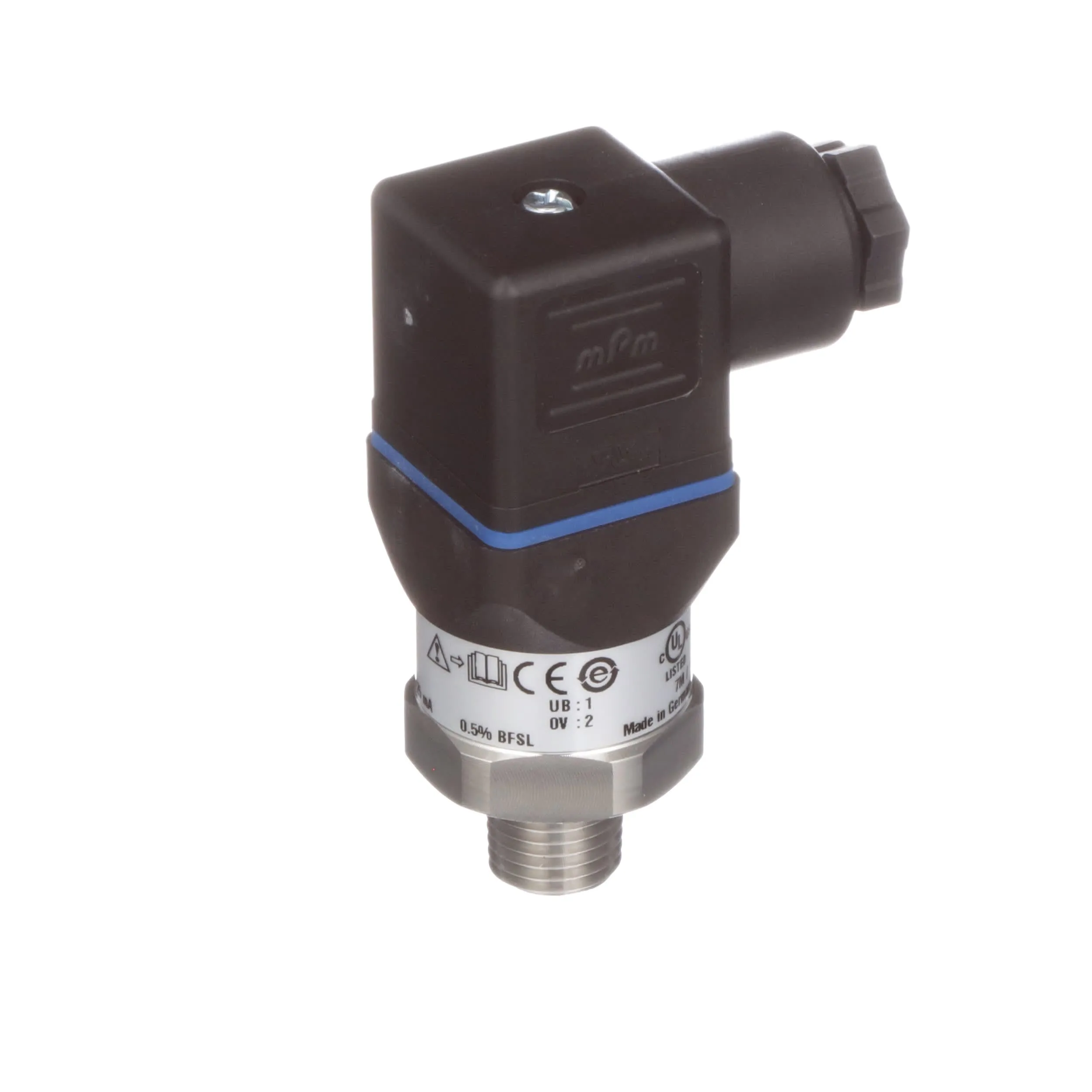

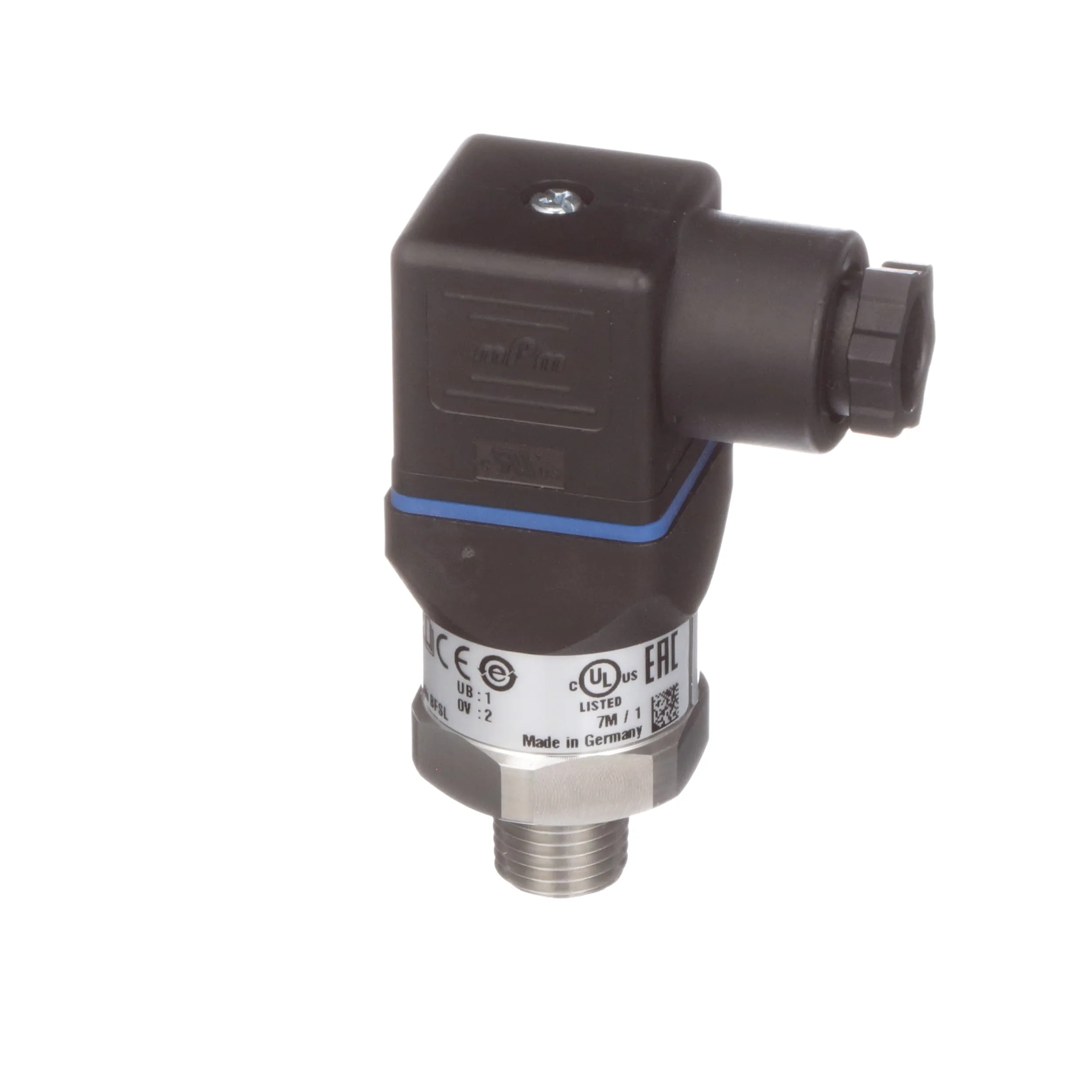

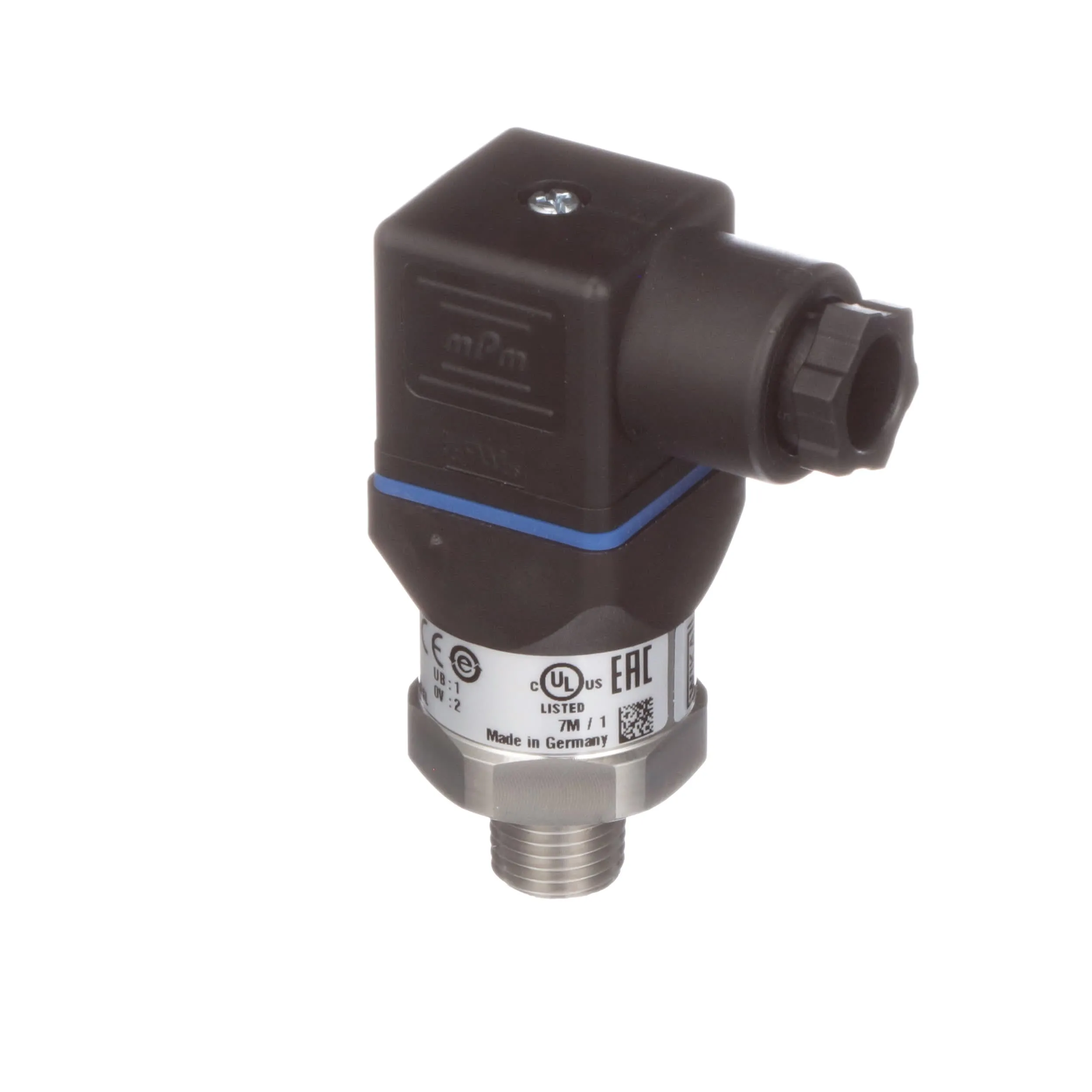

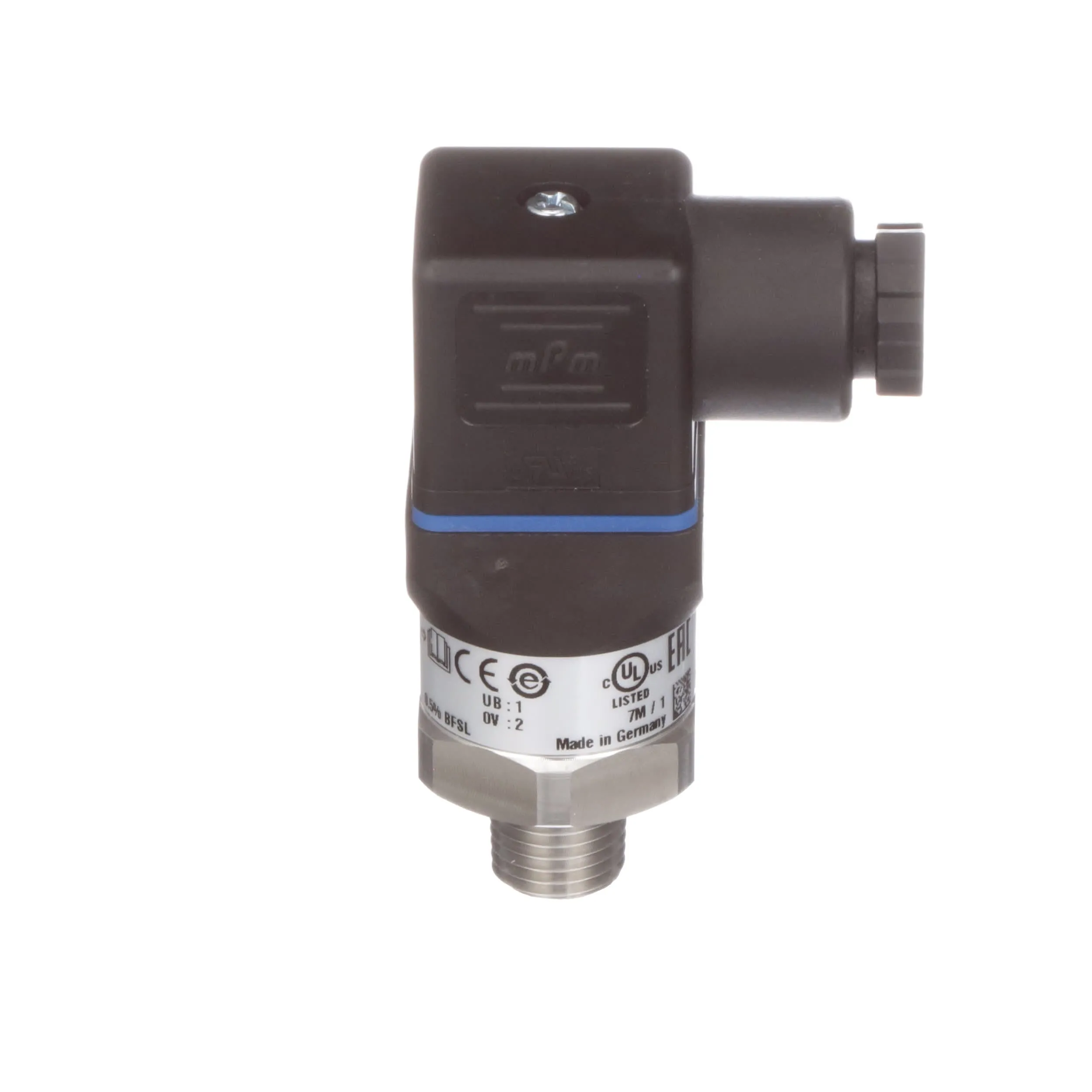

WIKA A-10 Series – General Purpose Pressure Transmitter | Type A-10 / 0 - 200 psi:

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability is enhanced by the all-stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long-term reliability of the A-10. Primary applications include process control and automation, hydraulics, pneumatics and machine controls.

Features:

Piezoresistive sensor and thin-film sensor technology

Pressure ranges from 0 - 20inWC to 0 - 15,000 psi

Non-linearity: =± 0.5% BFSL (=± 0.25% available)

Signal output: 4-20 mA, 0-10 V, 0-5 V, others

Electrical connections: DIN 175301-803 A and C, M12x1, 6 ft. cable, others

Pressure connection: 1/4 NPT, 1/2 NPT, SAE #4, others available

ASIC technology for performance and accuracy

Test data included with each transmitter

Reliability enhanced by fully automated assembly and testing

Case and process connection machined from a single piece of stainless steel without welds

4-20 mA 2-wire output signal or 0-10 V 3 wire available

Applications:

Mechanical engineering

Machine tools

Process control and automation

Hydraulics and pneumatics

Pumps and compressors
