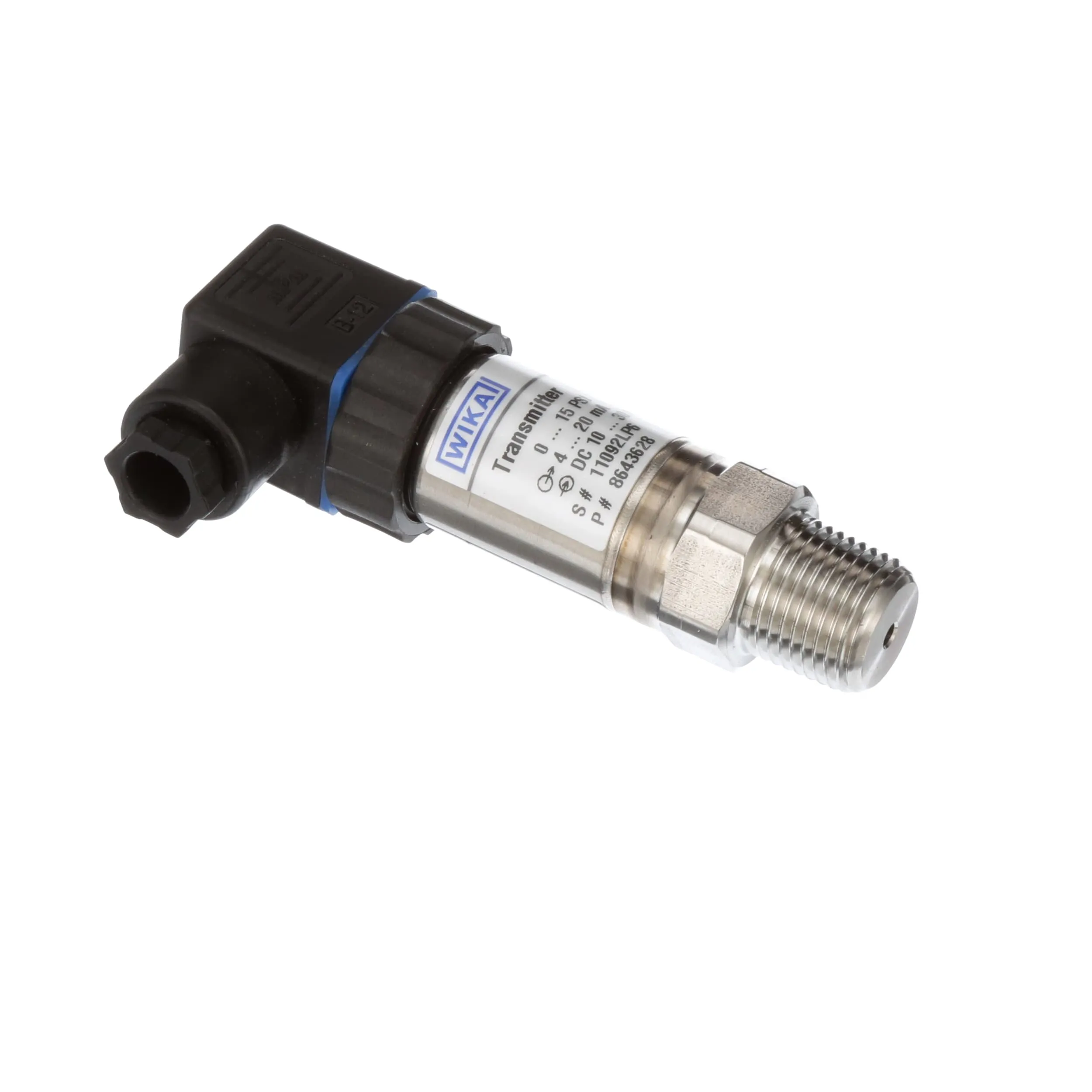

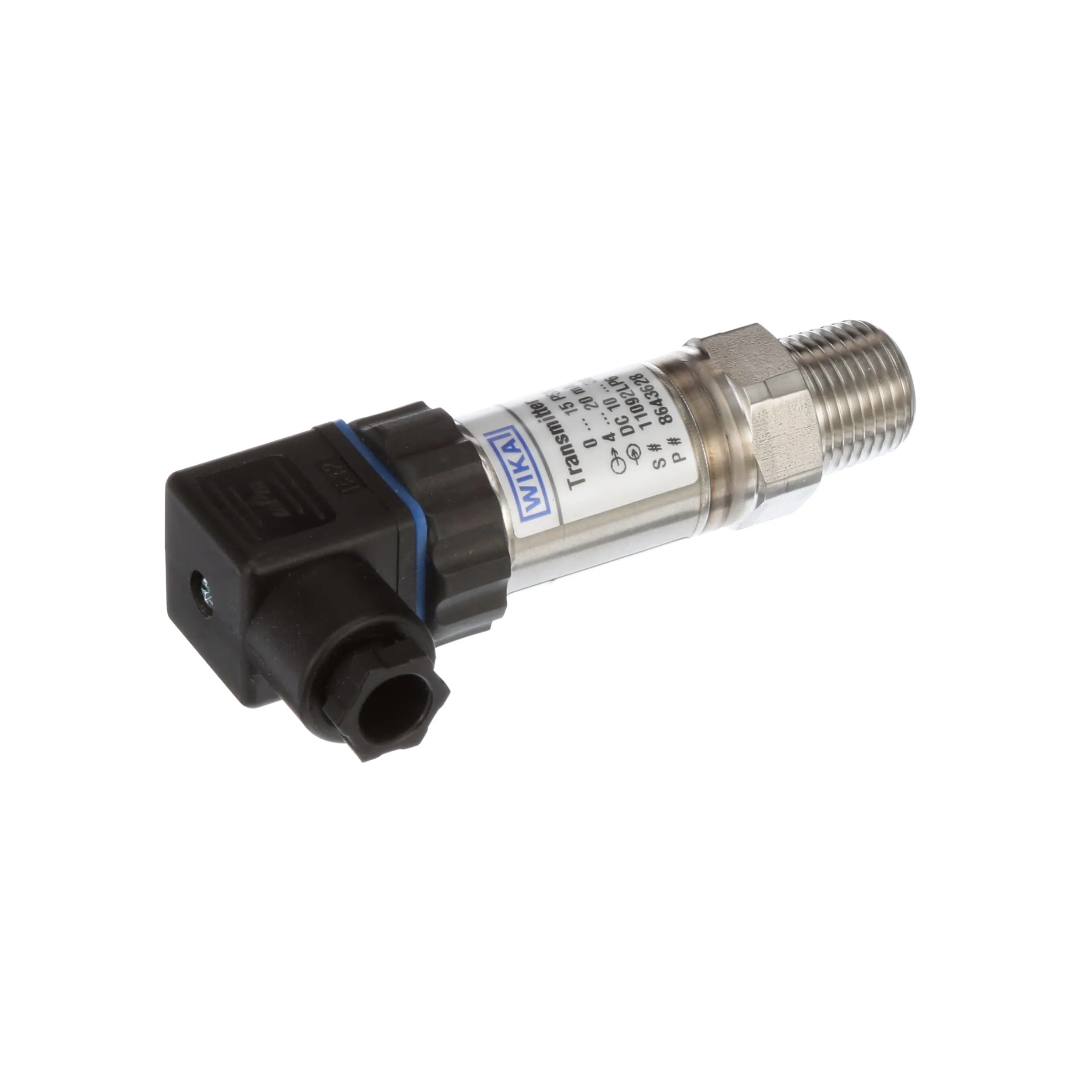

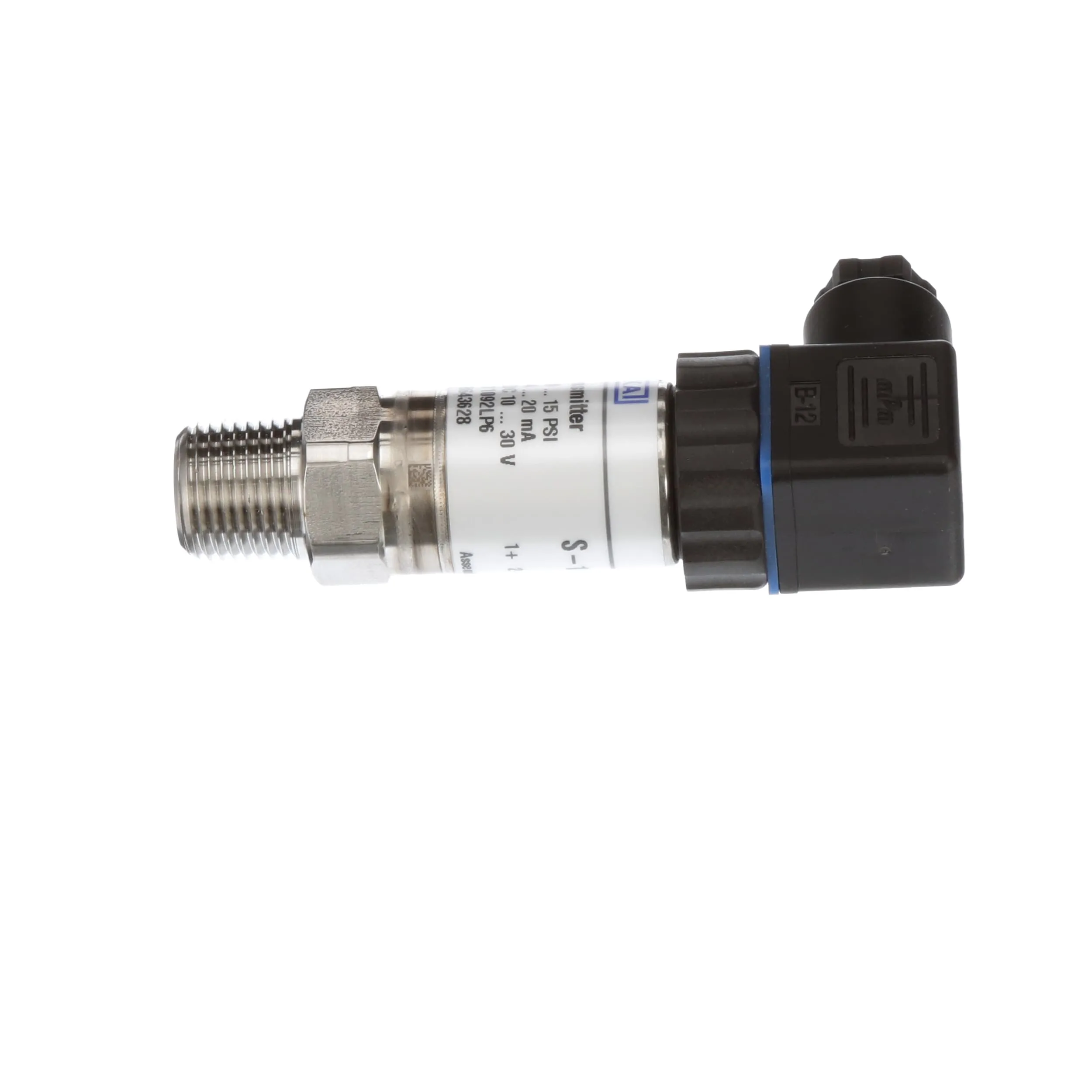

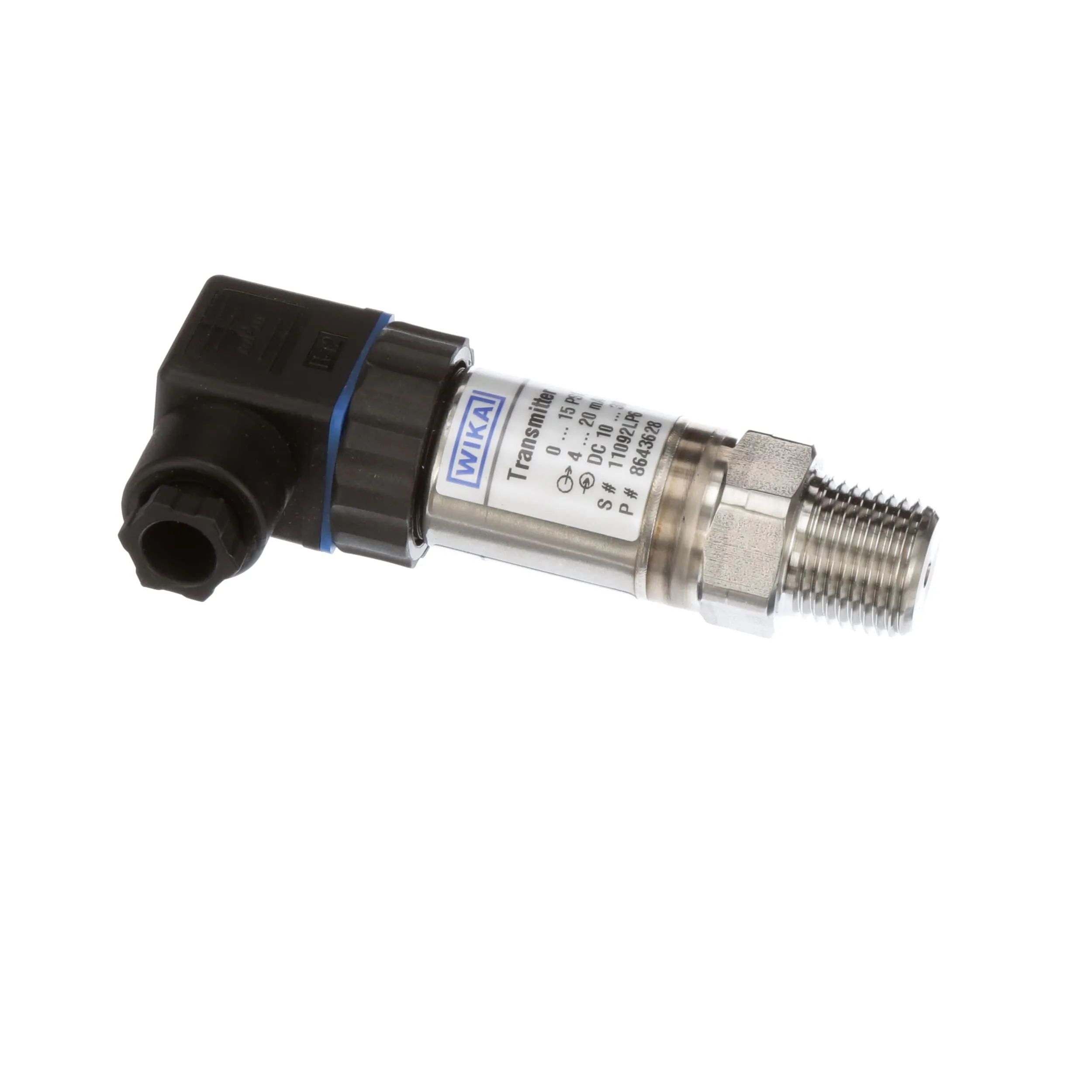

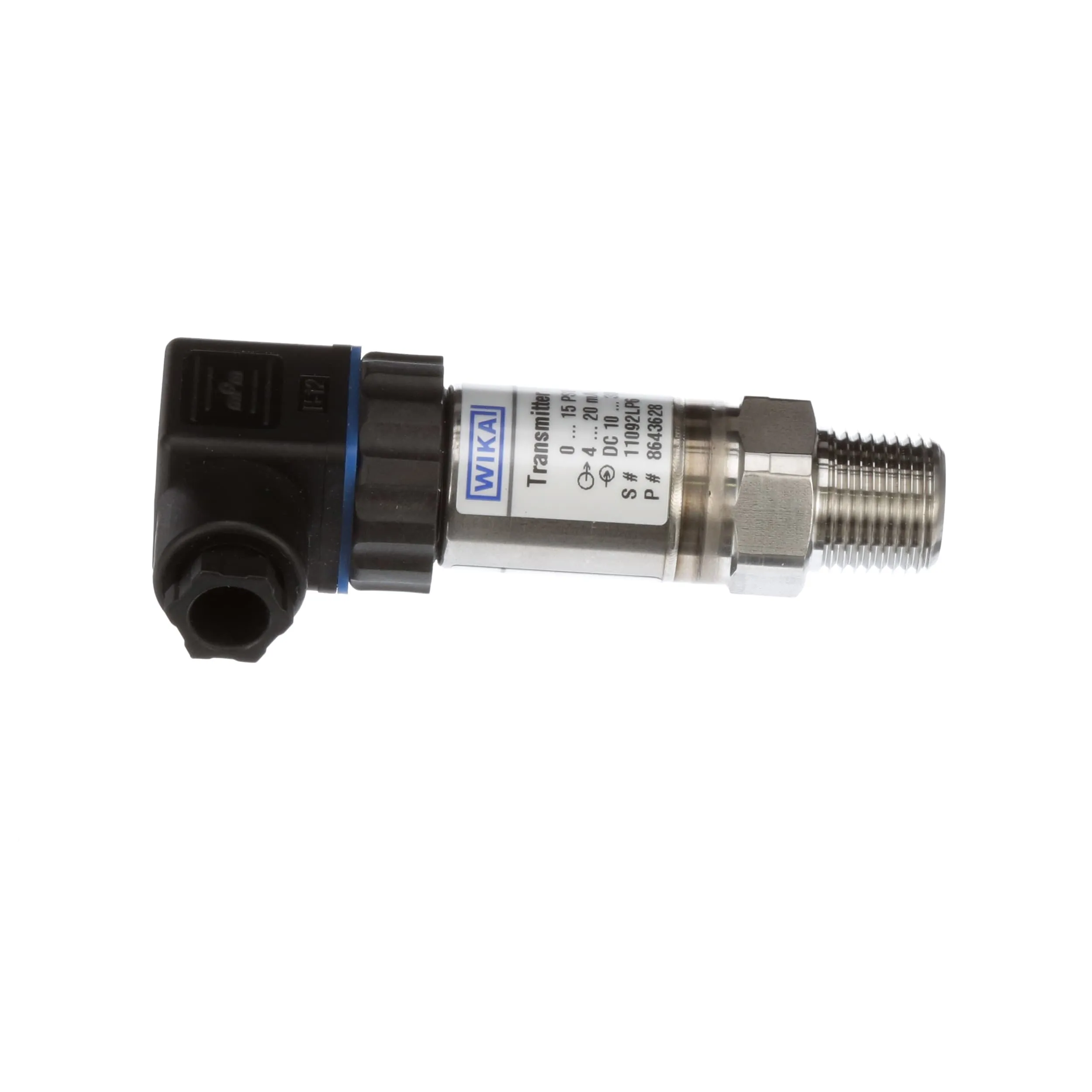

WIKA S-10 Series – General Purpose Pressure Transmitter | Type S-10 / 30 in. hg vac - 0 psi:

The WIKA A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability is enhanced by the all-stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long-term reliability of the A-10. Primary applications include process control and automation, hydraulics, pneumatics and machine controls.

Features:

Piezoresistive sensor and thin film sensor technology

Standard ranges available from stock

4-20 mA 2-wire output signal, others available

Highly resistant to pressure spikes and vibration

Stainless steel case and wetted parts

Can be assembled to diaphragm seals for special applications

Measuring ranges from 0 ... 5 to 0 ... 15,000 psi (0 ... 0.1 to 0 ... 1,000 bar)

Non-linearity 0.2 % of span (BFSL)

Output signals: 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others

Electrical connections: Angular connector form A, circular connector M12 x 1, various cable outlets and others

Zero point and span adjustable via internal potentiometer

Applications:

Mechanical engineering

Machine tools

Process control and automation

Hydraulics and pneumatics

Pumps and compressors
